Precise and cost-effective alignment of shafts thanks to new LASER-EQUILIGN2

Pressrelease Stage Image

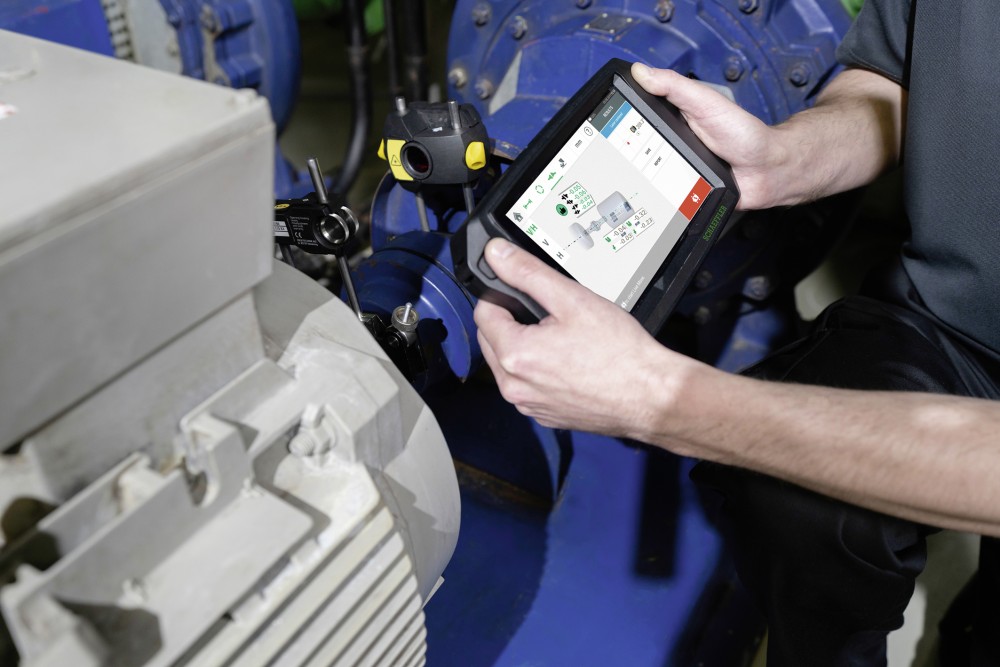

LASER-EQUILIGN2: Schaeffler relies on single-laser technology for the alignment of rotating shafts with the new LASER-EQUILIGN2 alignment system.

2021-11-04 | Birmingham

  • Schaeffler continues to expand its range of innovative mounting tools
  • The new LASER-EQUILIGN2 alignment tool meets the highest levels for ease-of-use when aligning shafts
  • High energy efficiency and lower operating costs thanks to precise shaft alignment

Birmingham | 4th November 2021 | If the shafts in pumps, compressors or gearboxes are not aligned with each other, the result is higher energy consumption and increased machine wear, which can lead to unplanned downtime. Based on the innovative single laser technology, Schaeffler, one of the world’s leading automotive and industrial suppliers, is now bringing the LASER-EQUILIGN2 alignment tool onto the market, an innovative system for aligning rotating shafts – for the highest levels of machine performance and availability as well as lower operating costs.

A fast and precise solution for maintenance technicians

The misalignment of shafts is a big problem for the operation of all types of machines. The temperature in couplings, bearings, grease, and motors increases and the machine or vehicle consumes more energy. Ultimately, the additional friction leads to significantly increased wear, possibly even causing shaft fractures and the total failure of systems and machines.

The LASER-EQUILIGN2 from Schaeffler enables the precise alignment of shafts and a significant reduction in work for maintenance technicians. This alignment tool can be deployed quickly and precisely due to its single laser technology. The non-verbal user interface with 8” TFT display and capacitive touchscreen (can be operated wearing suitable gloves) enables intuitive, user-friendly operation. The four-point measurement permits very high measurement accuracy.

Greater energy efficiency saves money and resources

In contrast to the conventional double laser technology in which two laser/sensor units must be aligned with each other, only one laser/sensor unit and a reflector are used in single laser technology. The single laser is simply aligned with the reflector. This increases the usability and provides maintenance technicians with precise measurement results.

The LASER-EQUILIGN2 is not only cost-effective but also sustainable and resource-conserving, as it shortens downtime due to faster maintenance. It also reduces the amount of repair work resulting from imbalances. Even with an assumed energy reduction of just one per cent, electricity cost savings of several thousand euros can be achieved annually depending on the performance and number of machines.
